Adding noise to odometry data published by the Gazebo simulator

I've had funny time playing around with the Gazebo simulator for autonomous robot exploration. One thing I've encountered is that the odometry data provided by Gazebo is so perfect that, sometime, makes the simulation less realistic. I used a Turtlebot model as robot model in my simulations. Googling around, i didn't find any solution of adding noise to the odometry data of this robot (using the URDF file). I then decided to develop a dedicated ROS node allowing me to add some random noise to the Gazebo's odometry data.

The robot motion model

First thing fist, we need to understand the robot motion model. There are many motion models, but in the scope of this article, we focus only on the odometry motion model. Often, odometry is obtained by integrating sensor reading from wheel encoders, it measures the relative motion of the robot between time \(t\) and \(t-1\) or \((t-1,t]\). In 2D environment, a robot pose is represented by a point \((x,y)\) and an orientation (rotation angle) \(\theta\), so the robot pose at the time \(t-1\) and \(t\) are denoted by:
$$p_{t-1}=(x_{t-1},y_{t-1},\theta_{t-1})$$
$$p_{t}=(x_t,y_t,\theta_t)$$

The robot's motion is shown in the following figure

(image source: Internet)

The motion consists of a first rotation \(\delta_{rot1}\) at previous robot pose, a relative translation \(\delta_{trans}\) and a second rotation \(\delta_{rot2}\) at the new pose. The motion is denoted by:
$$u_t=(\delta_{rot1},\delta_{rot2},\delta_{trans})$$
In the ideal case where the odometry data is perfect, these values can be calculated as:
$$\delta_{rot1}=atan2(y_t-y_{t-1}, x_t-x_{t-1})-\theta_{t-1}$$
$$\delta_{trans}=\sqrt{( x_t-x_{t-1})^2+( y_t-y_{t-1})^2}$$
$$\delta_{rot2}=\theta_{t}-\theta_{t-1}-\delta_{rot1}$$
However, in real situation, there are always noises in these rotations and translation, these noises can be modeled as random Gaussian noises, or random normal distribution. Let \(N(\mu,\sigma)\) is the random normal distribution function with mean \(\mu\) and standard deviation \(\sigma\), we can add a noise to each transformation as follow:
$$\hat{\delta}_{rot1}=\delta_{rot1}+N(0,\sigma_{rot1}^2)$$
$$\hat{\delta}_{rot2}=\delta_{rot2}+N(0,\sigma_{rot2}^2)$$
$$\hat{\delta}_{trans}=\delta_{trans}+N(0,\sigma_{trans}^2)$$

With the standard deviation for each transformation noise:
$$\sigma_{rot1}=\alpha_1|\delta_{rot1}|+\alpha_2\delta_{trans}$$
$$\sigma_{rot2}=\alpha_1|\delta_{rot2}|+\alpha_2\delta_{trans}$$
$$\sigma_{trans}=\alpha_3\delta_{trans}+\alpha_4(|\delta_{rot1}|+|\delta_{rot2}|)$$

Here \(\alpha_1,\alpha_2,\alpha_3,\alpha_4\) are adjustment parameters showing how important noise in each transformation could affect the motion, they represent the change in: degree/degree, degree/meter, meter/meter and meter/degree respectively. With the added noises, the new position of the robot \(\hat{p_t}=(\hat{x_t},\hat{y_t},\hat{\theta_t})\) can be calculated as:
$$\hat{x}_t=x_{t-1}+\hat{\delta}_{trans}cos(\theta_{t-1}+\hat{\delta}_{rot1})$$
$$\hat{y}_t=y_{t-1}+\hat{\delta}_{trans}sin(\theta_{t-1}+\hat{\delta}_{rot1})$$
$$\hat{\theta_t}=\theta_{t-1}+\hat{\delta}_{rot1}+\hat{\delta}_{rot2}$$

Playing around with the motion model

This simple python snippet shows how the distribution of the robot pose in the motion with noise look like:

from math import *
import numpy as np
import matplotlib
import matplotlib.pyplot as plt
# translation distance
dx=0.2
dy=0.35
trans = sqrt(dx*dx + dy*dy)
# rotation1 = 30 degree
theta1 = 30.0*pi/180.0
# rotation2 = 10 degree
theta2 = 10.0*pi/180.0

rot1 = atan2(dy, dx) - theta1
rot2 = theta2-theta1-rot1

# the alpha parameters
a1 = 0.05
a2 = 15.0*pi/180.0
a3 = 0.05
a4 = 0.01
sd_rot1 = a1*abs(rot1) + a2*trans
sd_rot2 = a1*abs(rot2) + a2*trans
sd_trans = a3*trans + a4*(abs(rot1) + abs(rot2))

x= []
y = []

for i in range(0, 1000):
    t = trans  + np.random.normal(0,sd_trans*sd_trans)
    r1 = rot1 + np.random.normal(0, sd_rot1*sd_rot1)
    r2 = rot2 + np.random.normal(0, sd_rot2*sd_rot2)
    x.append(t*cos(theta1+r1))
    y.append(t*sin(theta1+r1))

fig, ax = plt.subplots()
#ax.plot(x, y)
ax.scatter(x, y)
ax.set_title('Gaussian noise of motion model')
plt.show()

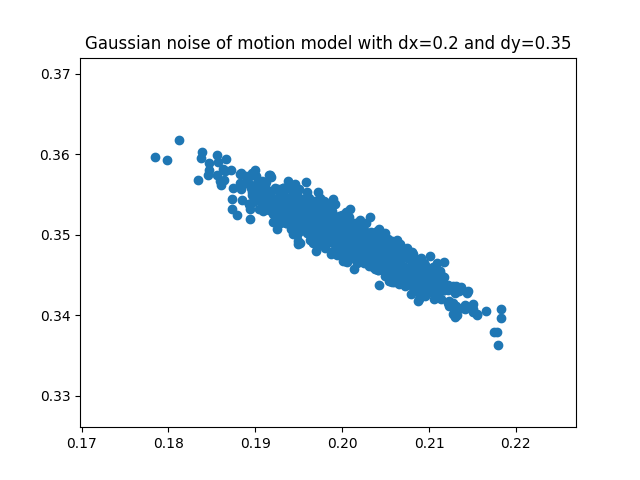

The following figure show 1000 random possible points as the new robot's pose when the robot performs a motion with \((dx=0.2,dy=0.35,\theta_{t-1}=30\degree,\theta_{t}=10\degree\)). Usually, with this model of noise, we have a typical banana-shaped distributions of points

Adding noise to Gazebo odometry data

With this model, it is simple to add noise to the perfect Gazebo odometry data. The idea is to take Gazebo odometry data as input and to consider it as groundtruth data (since it is already perfect). The motion model is applied to this data to calculate a new odometry (with noise). Obviously, odometry's noise is accumulated during time just like in real world situation.

The following Python snippet is an implemetation of a ROS node that calculates and publishes new odometry data using the previous motion model

#! /usr/bin/env python
import rospy
from math import *
import numpy as np
from nav_msgs.msg import Odometry
import tf

last_odom = None
pose = [0.0,0.0,0.0]
a1 = 0.0
a2 = 0.0
a3 = 0.0
a4 = 0.0
new_odom_frame = ""
odom_frame = ""

def callback(data):
    global last_odom
    global new_odom_frame
    global odom_frame
    global pose
    global a1
    global a2
    global a3
    global a4

    q = [ data.pose.pose.orientation.x,
                data.pose.pose.orientation.y,
                data.pose.pose.orientation.z,
                data.pose.pose.orientation.w ]
    (r, p, theta2) = tf.transformations.euler_from_quaternion(q)

    if(last_odom == None):
        last_odom = data
        pose[0] = data.pose.pose.position.x
        pose[1] = data.pose.pose.position.y
        pose[2] = theta2
    else:
        dx = data.pose.pose.position.x - last_odom.pose.pose.position.x
        dy = data.pose.pose.position.y - last_odom.pose.pose.position.y
        trans = sqrt(dx*dx + dy*dy)
        q = [ last_odom.pose.pose.orientation.x,
                last_odom.pose.pose.orientation.y,
                last_odom.pose.pose.orientation.z,
                last_odom.pose.pose.orientation.w ]
        (r,p, theta1) = tf.transformations.euler_from_quaternion(q)
        rot1 = atan2(dy, dx) - theta1
        rot2 = theta2-theta1-rot1

        sd_rot1 = a1*abs(rot1) + a2*trans
        sd_rot2 = a1*abs(rot2) + a2*trans
        sd_trans = a3*trans + a4*(abs(rot1) + abs(rot2))

        trans +=  np.random.normal(0,sd_trans*sd_trans)
        rot1 += np.random.normal(0, sd_rot1*sd_rot1)
        rot2 += np.random.normal(0, sd_rot2*sd_rot2)

        pose[0] += trans*cos(theta1+rot1)
        pose[1] += trans*sin(theta1+rot1)
        pose[2] +=  rot1 + rot2
        last_odom = data

    # publish tf
    br = tf.TransformBroadcaster()
    br.sendTransform((pose[0] - data.pose.pose.position.x, pose[1] - data.pose.pose.position.y, 0),
                     tf.transformations.quaternion_from_euler(0, 0, pose[2] - theta2),
                     data.header.stamp,
                     odom_frame,
                     new_odom_frame)

if __name__ == '__main__':
    rospy.init_node('noisy_odometry', anonymous=True)
    # alpha 1 is degree/degree
    if rospy.has_param("~alpha1"):
        a1 = rospy.get_param("~alpha1")
    else:
        rospy.logwarn("alpha1 is set to default")
        a1 = 0.05
    # alpha 2 is degree/m
    if rospy.has_param("~alpha2"):
        a2 = rospy.get_param("~alpha2")
    else:
        a2 = 10.0*pi/180.0
        rospy.logwarn("alpha2 is set to default")
    # alpha 3 is m/meter
    if rospy.has_param("~alpha3"):
        a3 = rospy.get_param("~alpha3")
    else:
        a3 = 0.05
        rospy.logwarn("alpha3 is set to default")
    # alpha 4 is m/degree
    if rospy.has_param("~alpha4"):
        a4 = rospy.get_param("~alpha4")
    else:
        a4 = 0.01
        rospy.logwarn("alpha4 is set to default")
    # get odom topic
    if rospy.has_param("~old_odom_topic"):
        odom_topic = rospy.get_param("~old_odom_topic")
    else:
        odom_topic = "/odom"
    # get base frame
    if rospy.has_param("~new_odom_frame"):
        new_odom_frame = rospy.get_param("~new_odom_frame")
    else:
        new_odom_frame = "odom1"

    # get base frame
    if rospy.has_param("~odom_frame"):
        odom_frame = rospy.get_param("~odom_frame")
    else:
        odom_frame = "odom"

    rospy.Subscriber(odom_topic, Odometry, callback)
    rospy.spin()

References

  1. https://www.mrpt.org/tutorials/programming/odometry-and-motion-models/probabilistic_motion_models/
